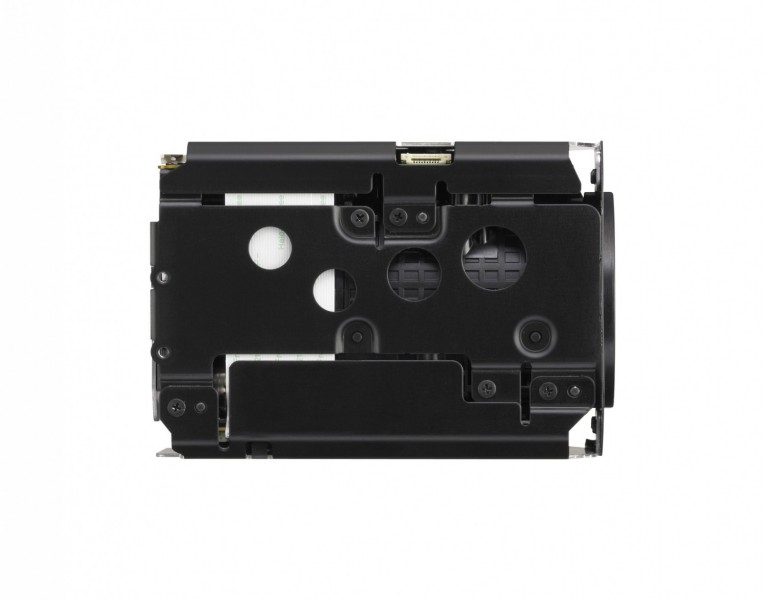

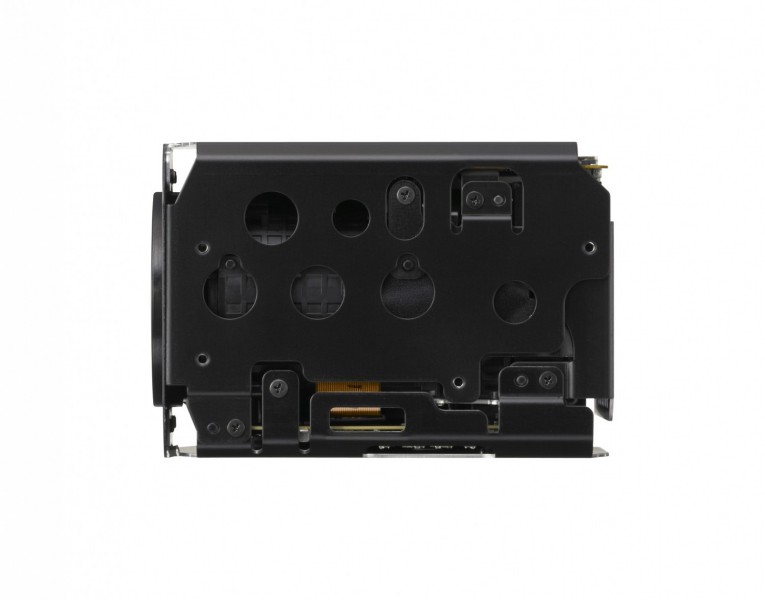

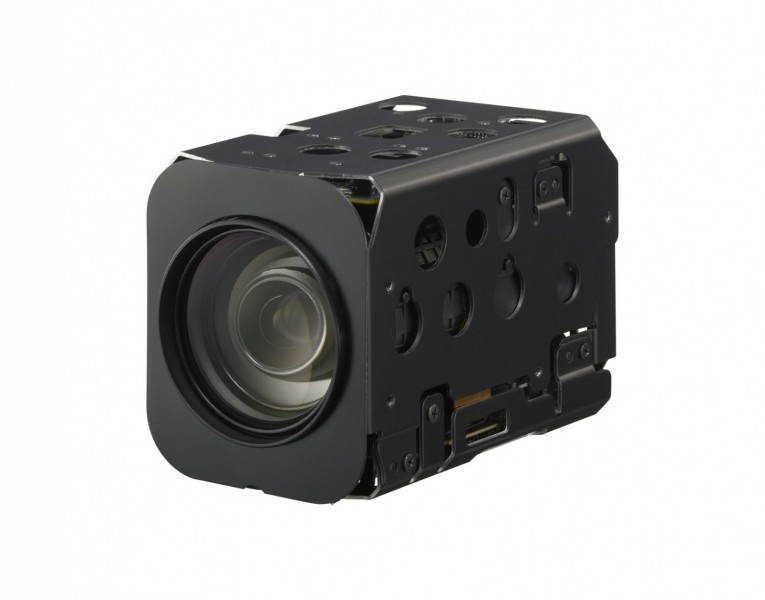

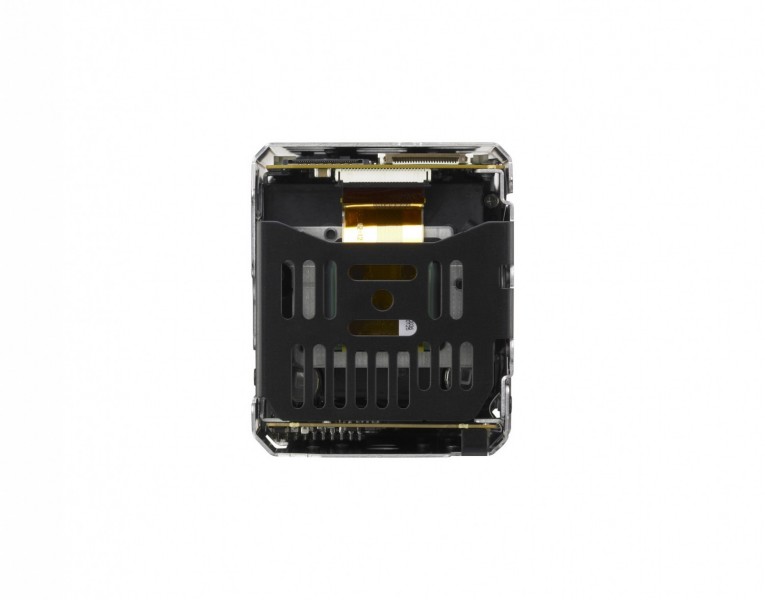

FCB-EH6300
Full HD 20x Colour Camera Block
The flagship camera in the EH range is the FCB-EH6500 which incorporates a 1/2.8-type Exmor™ CMOS image sensor with Full HD (1920 x 1080) resolution, and achieves excellent zooming performance with a 30x optical zoom lens. One other camera in the series, the FCB-EH6300, is equipped with the same image sensor to deliver Full HD resolution with 20x optical zoom capability. The remaining cameras in this series all incorporate a 1/4-type Exmor CMOS image sensor with HD (1280 x 720) resolution. The FCB-EH3310 and FCB-EH3410 models deliver a high quality HD image with great sharpness, which makes them ideal for security applications. And the smallest camera in the FCB-EH Series is the affordable FCB-EH3150. Along with its HD resolution sensor, it features a 12x optical zoom lens. All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series such as Wide-D*, Auto ICR, and Spherical Privacy Zone Masking. With this breadth of choice, it has never been easier to select the right camera from Sony for your specific imaging applications.
- Excellent high-definition (HD) picture quality
- The “Exmor” CMOS sensor realizes high image quality and high sensitivity
- Powerful zoom capability
- Various output modes
- Simple connection - one cable, one connector
- StableZoom™
- Video Mode Change on The Fly
- Security-oriented functions include:
Wide-D technology (On/Off/ Auto/Ratio fix)
Day/Night function (On/Off/ Auto/Threshold enabled)
Digital noise reduction (Up to 5 levels)
Spherical privacy zone masking (24 zones with various PTZ controls)
Motion detection alarm (4 zones with several triggering and threshold modes)
- Various modes for White Balance
- Picture effects
- Picture freeze
- Temperature readout
- Slow AE response (Approx. 5 min.)
- Title display (20 characters per line, max. 11 lines)
- Camera mode display (English)
- Electronic shutter/slow shutter
- Spot AE
- High Resolution Mode
- IR Focus Correction Function
- 4 Presets for Gamma Control
- 4 Levels of Chrominance Suppression
| MTBF (excluding lens) | 52 |
|---|---|
| Power Voltage | 6 |
| Power Consumption | 4 |
| Operating temperature/ Humidity | -5 |
| Storage Temperature Humidity | -20 |
| Lens Diameter | 37 |
| Metal Frame | Y |
| Connector | 24-pin FFC, 30 pin LVDS |
| Video Output | HD: Analog Component (Y/Pb/Pr), Digital (Y/Cb/Cr 4:2:2) SD: VBS |
| Visca Model ID | 45 |
| Serial Interface | Stop bit 1/2 bit, 38.4 Kbps, 19.2 Kbps, VISCA protocol (TTL/CMOS), 9.6 Kbps |
| User Memory | 16 |
| Preset | 1 custom/power on preset, 6 positions |
| Aperture Control | 16 steps |
| Alarm function | Yes (Motion detection with 4 zones) |
| Interlock with pan, tilt and zoom | Yes (Spherical interlocking) |
| Privacy Zone masking Detail | (24 mask, 8 on screen, 160x90 matrix) |
| Privacy Zone Masking | Yes (with Spherical Pan/tilt) |
| Grid/Cross Disaply | Yes |
| Picture Effects | Color enhancement, Mirror, E-Flip, Neg. Art, Black & White |
| Character Generator | Yes (20 characters/line, max. 11 lines) |
| Spot AE | Y |
| Focusing System | Focus Compensation with IR lighting, Near Limit, Zoom Trigger AF, Manual, Interval AF, Infinity, One-push AF, Auto (Sensitivity: normal-low) |
| Flicker Compensation | No |
| Noise Reduction | 5 steps |
| AE Control | Back Light Compensation, Slow Shutter - Auto/Manual, Exposure Compensation, Slow AE, Bright, Manual, Iris Priority, Full Auto, Shutter Priority |
| EV Compensation | -10 |
| White Balance | Manual, One-push, Sodium Vapor Lamp Fix/Auto, Outdoor Auto, Outdoor, Indoor, ATW, Auto |
| Gain | 0 |
| Electronic Shutter Speed | 1 |
| AD | 0 |
| SN Ratio | 0 |
| Minimum Illumination 3 | 0 |
| Minimum Illumination 2 | 0 |
| Minimum Illumination | 1 |
| Recomended Illumination | 100 |
| Min Working Distance (tele) | 1000 |
| Min Working Distance (WIDE) | 10 |
| Angle of View H (WIDE) | 0 |
| Digital Zoom | 0 |
| Zoom Movement Speed | 0 |
| Lens - f stops | 0 |
| Lens - Detail | 0 |
| Lens | x20 Zoom |
| Horizontal Resolution | 950 |
| Picture Elements | 3 |
| Signal System | 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, HD: 1080p/29.97, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60 |
| Wide Dynamic Range | Yes |
| Slow Shutter Function | Y |
| Auto Slow Shutter | Y |
| Freeze | Y |
| ICR function | Y |
| Auto ICR function | Yes (adjustable threshold) |
| Sensor Type | 1/3-type CMOS |
| Sensor Ref | 0 |
| Weight | 270 |
| Width | 50 mm |
| Depth | 87 |
| Height | 60 mm |
| Order Quantity | 10 |
