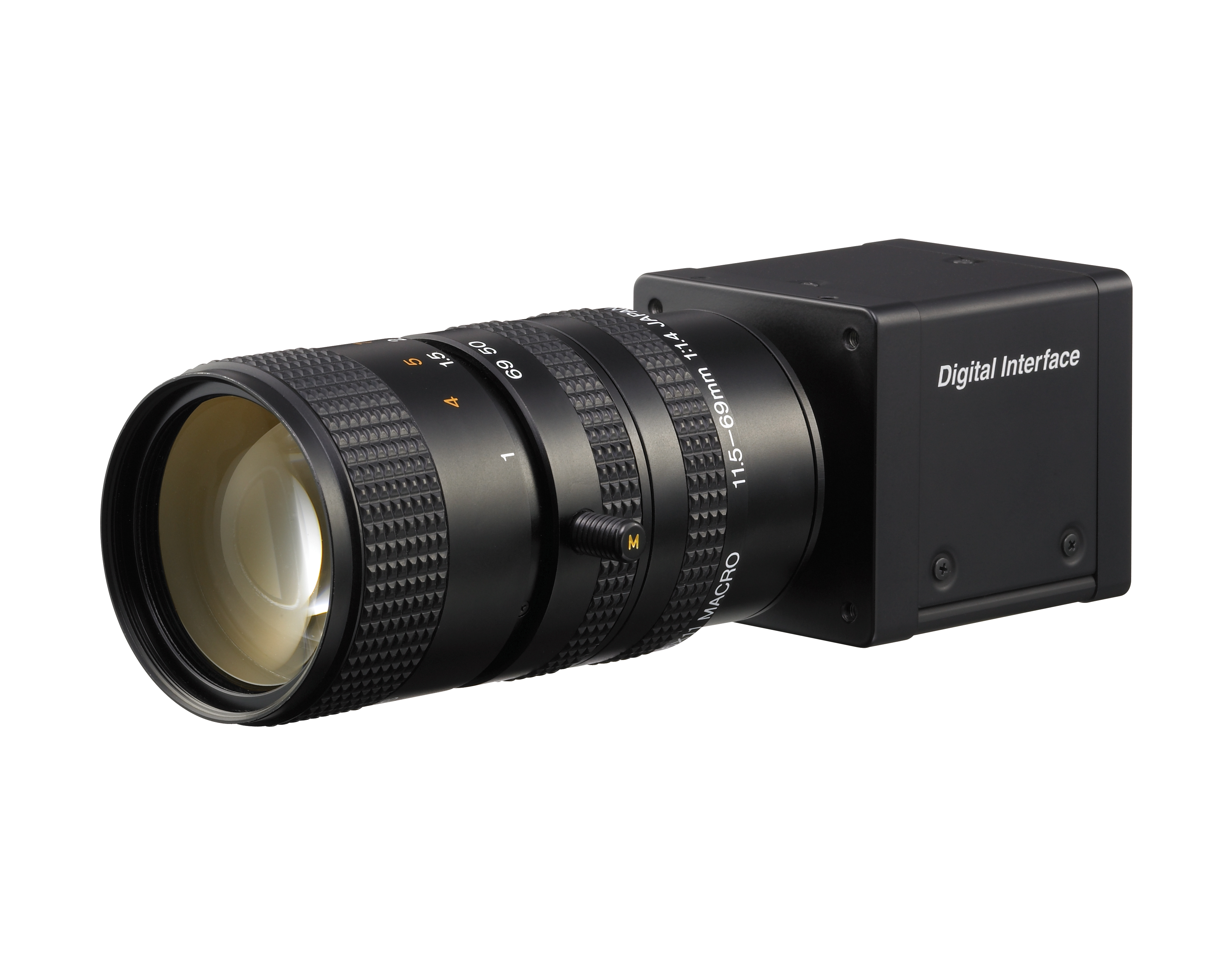

XCG-H280E

Sony is expanding its popular XCG GigE camera series with the

introduction of a new high-quality, high-sensitivity monochrome

camera. The new XCG-H280E incorporates a 2/3-type EXview

HAD CCD II™ sensor which provides greater sensitivity in the

visible and near-infrared wavelengths than previous models.

In addition to inheriting some of the unique features of Sony’s

XCD Series such as Bulk Trigger and Sequential Trigger modes,

the XCG-H280E features a full-HD high frame rate image-transfer

capability with 8-, 10-, or 12-bit video data output.

Features

The XCG-H280E incorporates the GigE Vision® interface standard,

based on Gigabit Ethernet technology. In response to the

growing demand for large-scale systems, this interface enables

the camera to transfer a large amount of data over long

distances. The use of an Ethernet cable and the availability of a

wide variety of peripheral devices contribute to significant

cost-cutting benefits when designing a complete vision system.

By utilizing the features and benefits of the GigE Vision, the

XCG-H280E camera is ideally suited to the demanding

requirements of ITS (Intelligent Transportation Systems) and

machine-vision applications.

Excellent picture quality thanks to progressive scan CCD technology from Sony
CCD read out supports Partial scan, Binning
8/10/12 bits / pixel (Raw data or B/W)
Shutter Manual (2 to 1/100,000s)
Gain control Manual (0 to + 18dB) /Auto
16 Memory Channels

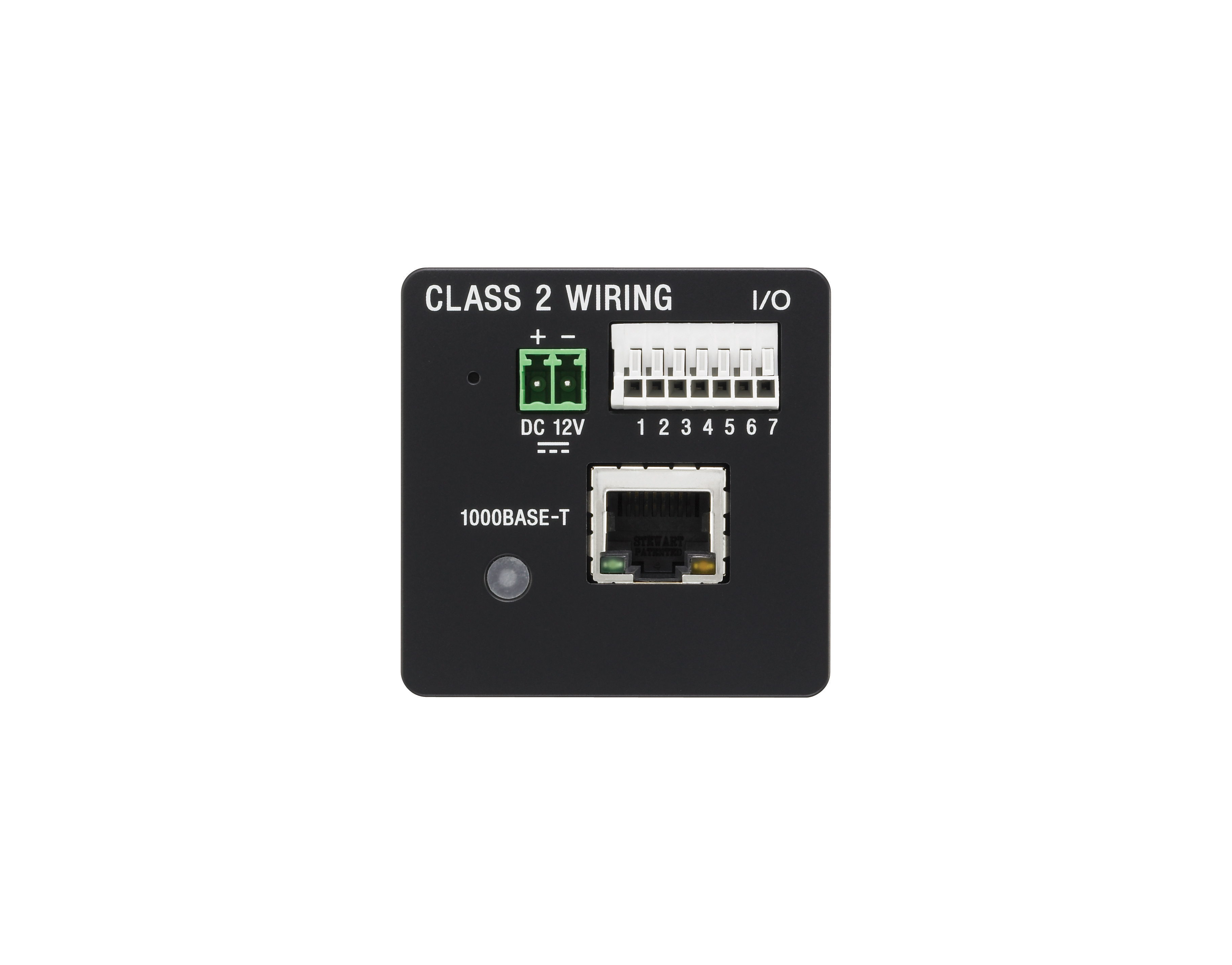

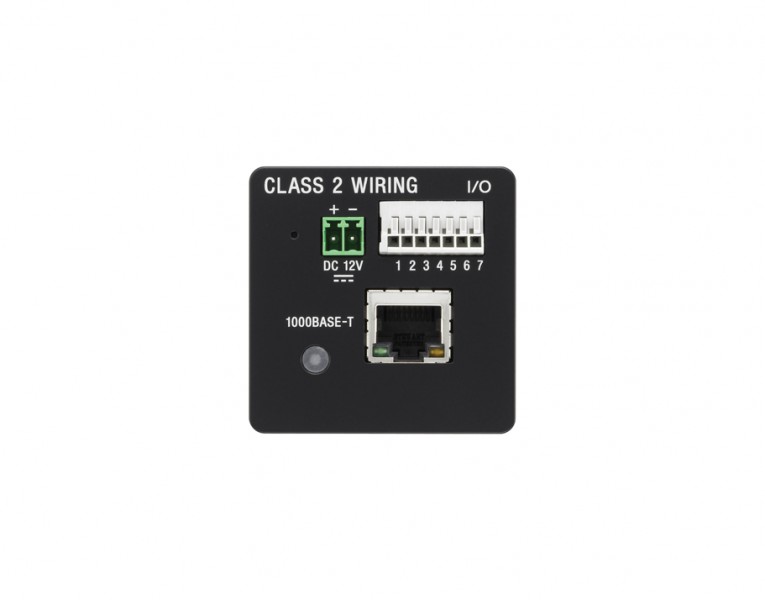

GigE Vision interface based on Gigabit ethernet 1000 BASE-T technology
Packet resend mechanism
Data transfer length up to 100m
Advanced trigger modes (sequence, pulse width, delay)
Fixed trigger latency (from hardware input to exposure start)
Exposure output, digital inputs/outputs
1,024 Bytes User Memory

GigE Vision Interface

The adoption of the GigE Vision® Version 1.2 adds to the outstanding value and performance of the XCG-H280E camera. Being GenICamcompatible, the XCG-H280E is easy to integrate, thanks to a host of commercially available image-processing libraries.

High Frame Rate Image Transfer

The XCG-H280E features a high readout rate of uncompressed images for smooth and clear results. This also enables the camera to capture fast-moving objects without sacrificing image quality.

High Sensitivity

Utilizing Sony’s latest EXview HAD CCD II technology enables the XCG-H280E to capture clear images in lowlight environments. When used with an infrared strobe, the camera’s high sensitivity in the near-infrared wavelength delivers outstanding picture quality.

Image Buffer

The XCG-H280E is equipped with an image buffer, which serves as temporary storage for captured images for later transmission or retransmission. This function allows users to maximize bandwidth in multiple-camera operations or reconfirm specific images as required.

Bulk Trigger Mode & Sequential Trigger Mode

In addition to conventional Trigger mode, the XCG-H280E camera features advanced Bulk Trigger and Sequential Trigger modes. The camera supports 16 memory channels that can store up to 16 different camera setups (exposure, gain, LUT). Bulk Trigger mode allows the XCG camera to capture up to 16 images in rapid succession using a single software or hardware trigger. Sequential Trigger mode allows the camera to capture a single image using successive setups stored in the memory channels with each software or hardware trigger.

Low Power Consumption and Compact Design

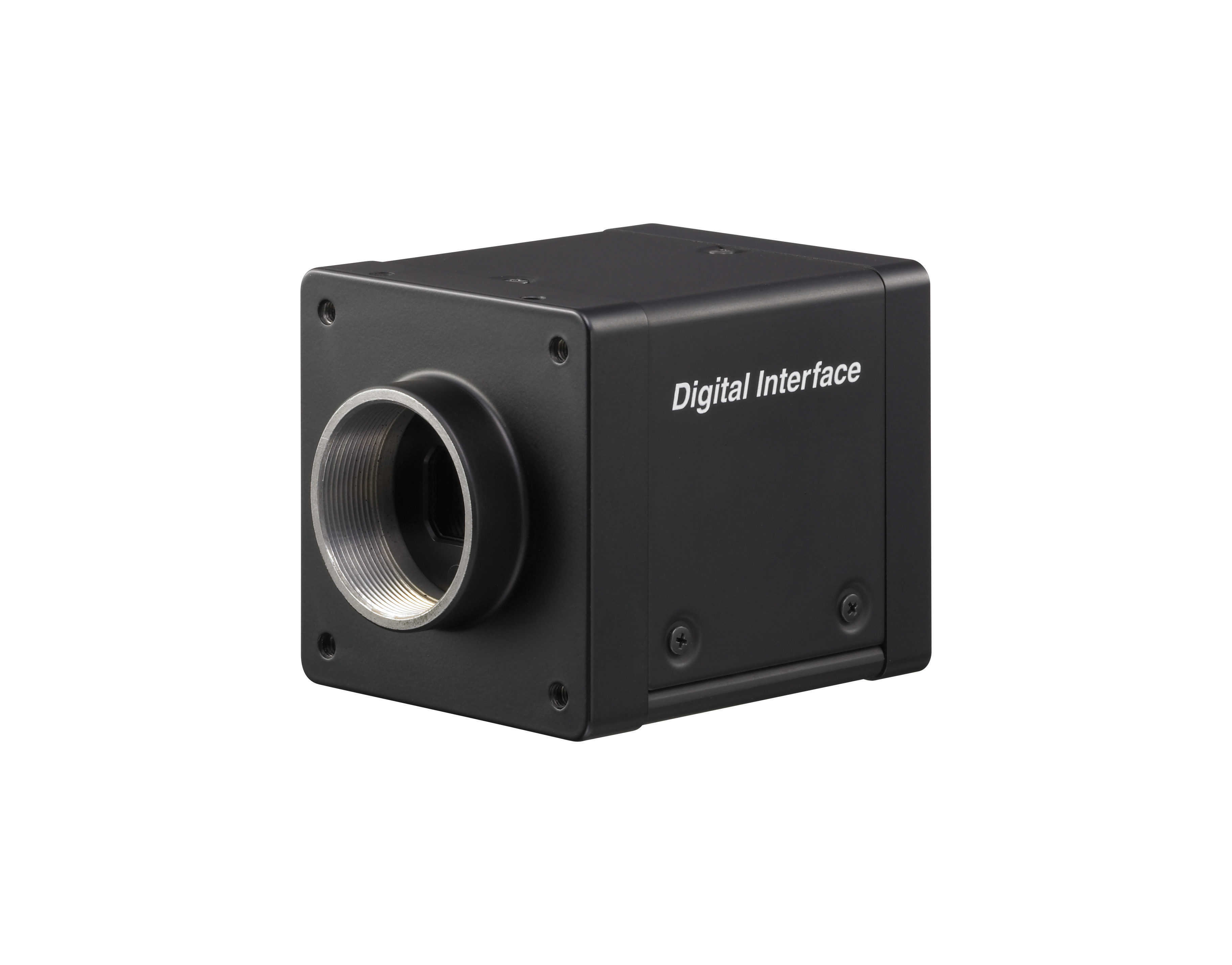

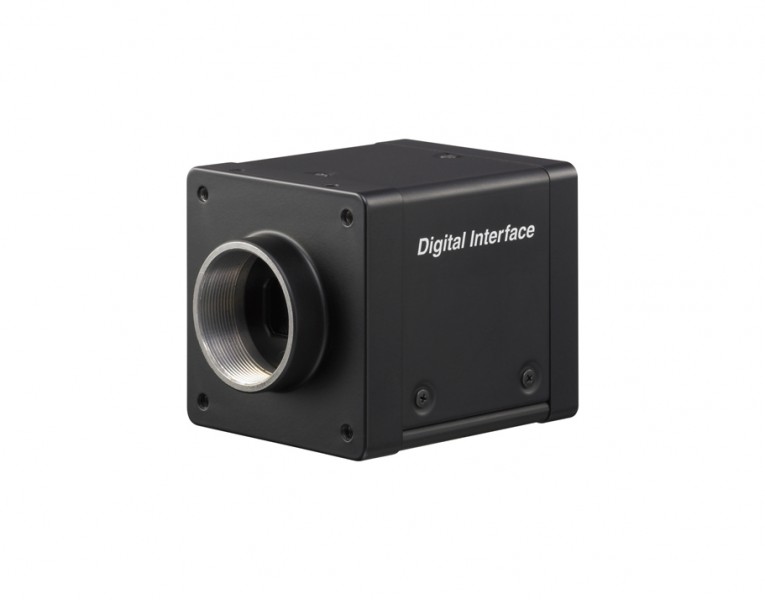

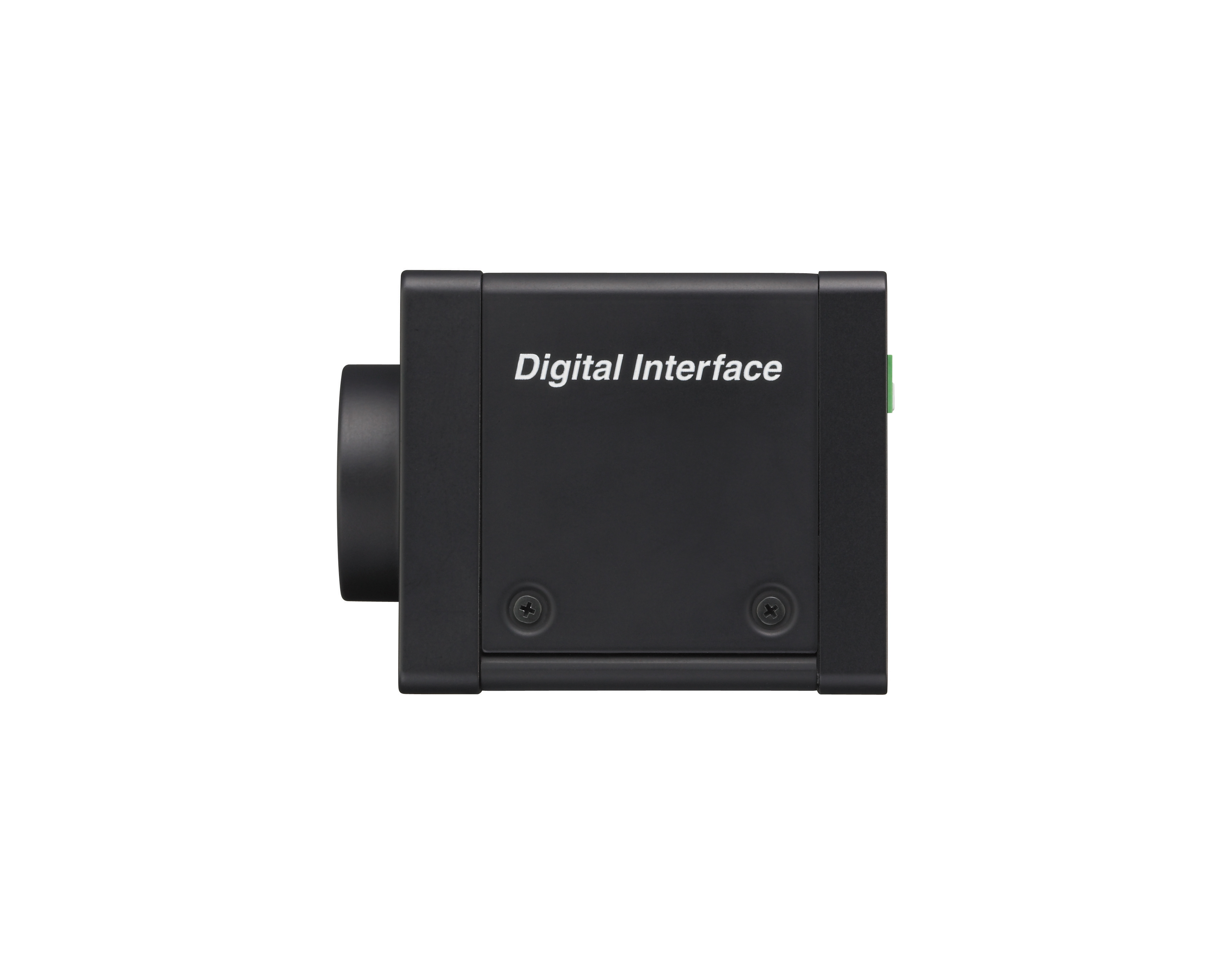

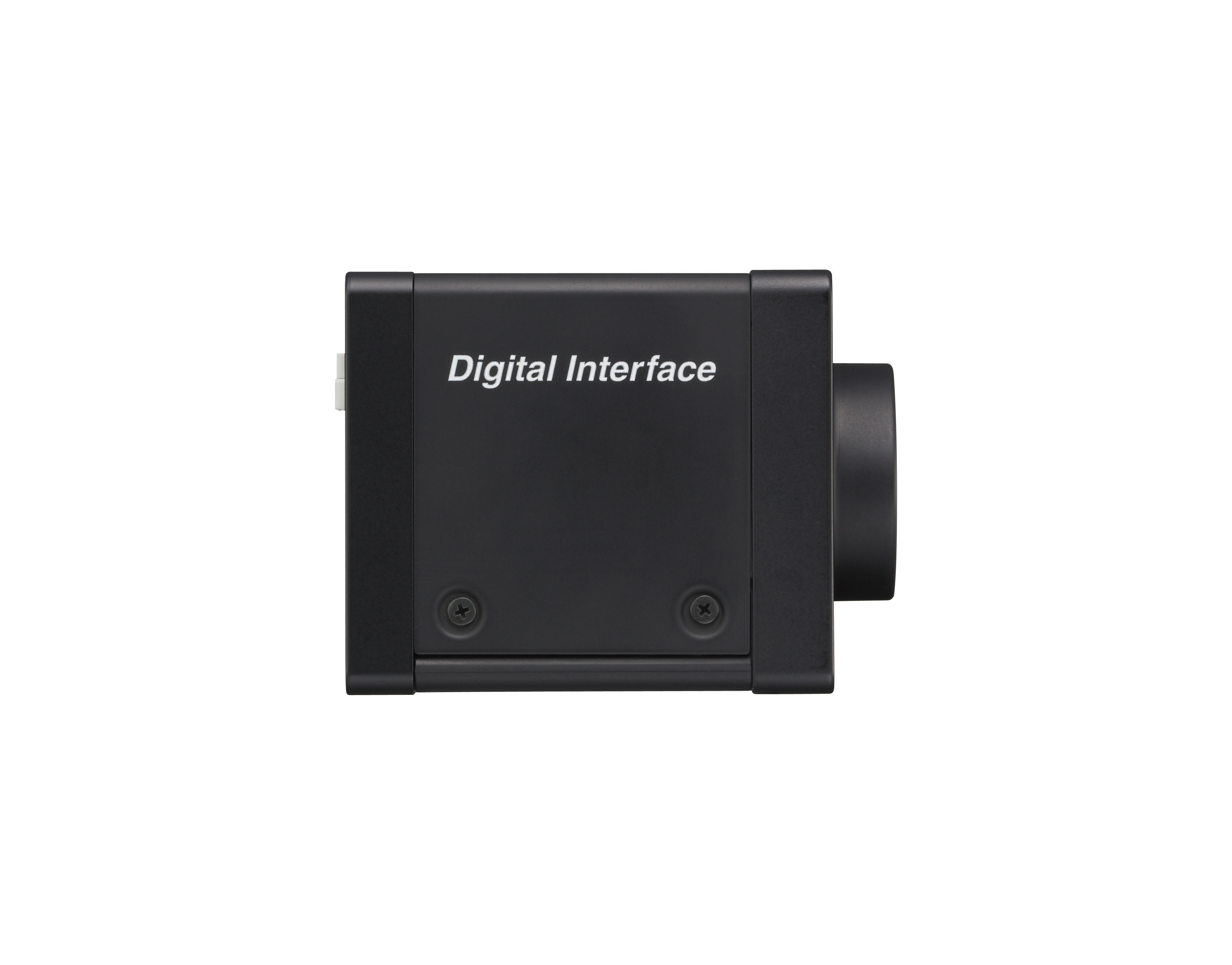

The XCG-H280E camera features low power consumption and a compact 50 x 50 x 57.5 mm (2 x 2 x 2 3/8 in) design. The camera also has the ability to operate at temperatures of up to 50°C / 122°F.

Accessories

Optional accessories:

Tripod Adaptor
VCT-ST70I

Camera Adaptors
DC-700
DC-700CE

Cables
CCXC-12P02N
CCXC-12P05N
CCXC-12P10N
CCXC-12P25N
