XC-EI Series

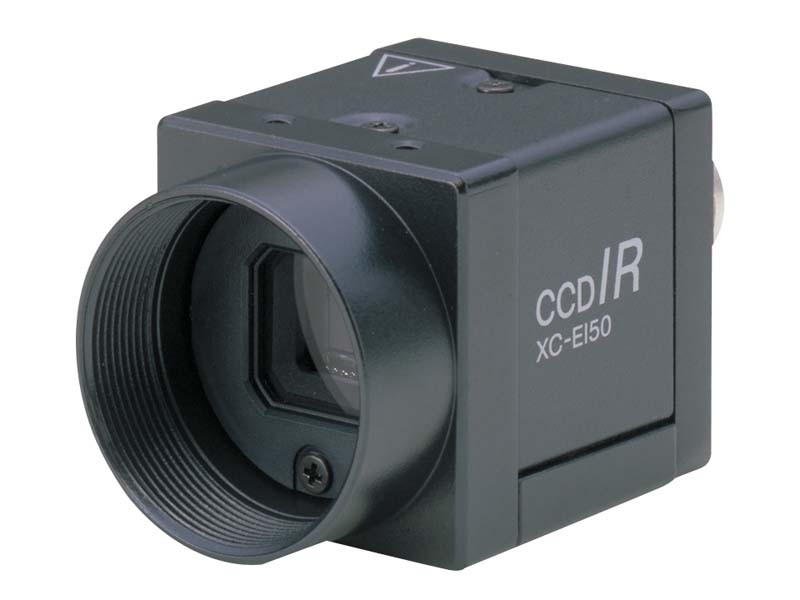

XC-EI50/CE
The XC-E Series are compact, lightweight one-piece black and white cameras incorporating the latest 1/2 and 1/3 type Interline (IT) CCD which produces new levels of picture detail.
With dimensions of 29 x 29 x 32 mm, these cameras can easily be installed in places where installation was previously difficult for other larger cameras.
Features
- 1/2 type IT CCD
- Compact and light weight: 29 (W) x 29 (H) x 32 (D) mm, 50 g
- Near-infrared sensitivity
- Minimum illumination at F1.4: 0.1 lx
- High S/N Ratio: 60 dB
- Electronic shutter function: 1/100 to 1/10,000 s: EIA, 1/120 to 1/10,000 s: CCIR
- Flexible trigger shutter function
- Scanning system: 2:1 interlaced
- Frame/field exposure
- Restart/reset function
- Synchronization: internal/external (HD/VD)
- High shock and vibration tolerance
Accessories
Optional Accessories:
Compact camera adaptor
DC-700CE
- Compact, lightweight (700 g)
- External sync IN/OUT
- Trigger input/WEN output
- New EIAJ standard 12-pin connector
- Dimensions: 110 (W) x 53 (H) x 160 (D) mm
Tripod adaptor
VCT-333I
- ABS
- Approx. 6.1 g
- Dimensions: 18 (W) x 6 (H) x 2.9 (D) mm
12-pin camera cable (CE standard)
• CCXC-12P02N (2 m)
• CCXC-12P05N (5 m)
• CCXC-12P10N (10 m)
• CCXC-12P25N (25 m)
Junction Box
JB-77
Downloads
Sony XC Series Downloads
You may need to be logged in to have access to some documents.
Datasheet
Technical Manual
Operating Instructions
