EVI-D70/P

Sony continues to add choice and flexibility to its industry-leading pan/tilt/zoom camera lineup with the introduction of the Sony EVI-D70 and EVI-D70P colour video cameras.

The EVI-D70 and EVI-D70P combine a high-quality colour video camera with the flexibility of remote pan/tilt/zoom operation, all in a compact easy-to-use package. Incorporating an 18x optical zoom lens, these cameras allow a user to zoom in on a small or distant object with exceptional clarity. Compared to their predecessor, the
EVI-D30/D31, EVID70 and EVI-D70P cameras offer a wider pan/tilt range, and a faster pan/tilt mechanism. Above all, these cameras are ceiling mountable - a first for Sony’s popular EVI cameras.

The EVI-D70 and EVI-D70P are also equipped with a variety of convenient features such as an Auto ICR function, Alarm function. Alarm function and RS-232C/422 serial control, making them ideal for any remote-shooting applications such as distance learning, places of worship, courtrooms, event venues, concert halls, and more.



Features

216x Zoom Ratio
(18x Optical, 12x Digital)

Wide-Range, High-Speed Pan/Tilt

- Pan angle: -170º to +170º

(max. pan speed: 100º/s)

- Tilt angle: -30º to +90º

(max. tilt speed: 90º/s)



Superb Picture Quality with EXview HAD CCDTM

The adoption of Sony EXview HAD CCDTM technology improves basic camera performance. For example, these cameras offer superb sensitivity of 1 lx (typical), and a low smear level and D-range.



- Minimum illumination: 1 lx

- Horizontal resolution:

470 TV lines (EVI-D70)

460 TV lines (EVI-D70P)



Ceiling-Mount or Desktop Installation

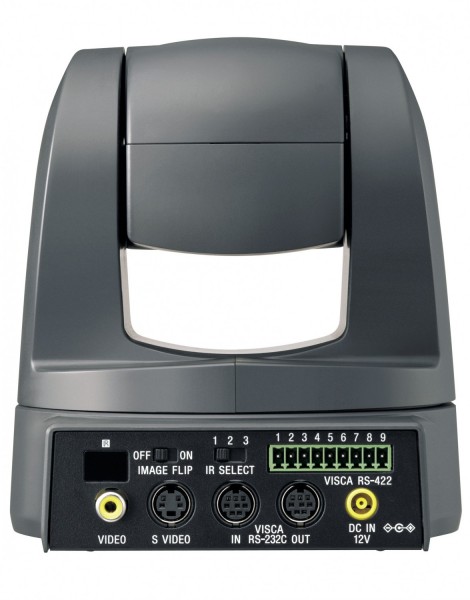

RS-232C or RS-422 Serial Control (VISCATM Command)

All camera settings and pan/tilt/zoom functions can be controlled remotely via a PC.

With the RS-232C connection, maximum cable length can be extended to 15 m (50 feet), while the RS-422 connection extends this further to 1200 m (4000 feet).



Auto ICR (IR Cut filter Removal) Function

The Auto ICR function automatically switches the settings to attach or remove the IR Cut filter for increased sensitivity. With a set level of darkness, the IR Cut filter is automatically disabled (ICR ON), and the infrared sensitivity is increased. With a set level of brightness, the filter is automatically enabled (ICR OFF). The ICR automatically engages depending on the ambient light, allowing the cameras to be effective both in day and night environments.



Alarm Function and AE Spot Setting

The EVI-D70/D70P cameras provide an alarm function that can detect changes within a userdesignated area of an image.*When a change in AF, AE or both is detected, these cameras output an alarm trigger signal to the external equipment via the VISCATM protocol. In combination with the Spot AE function, these cameras also detect changes in the luminance level, and they output an alarm signal. The detecting area can be applied to any of 16 vertical and 16 horizontal blocks.



Auto Power-Off/Night Power-Off Function



Daisy Chain Capability (Up to Seven Cameras)



Six-Position Preset

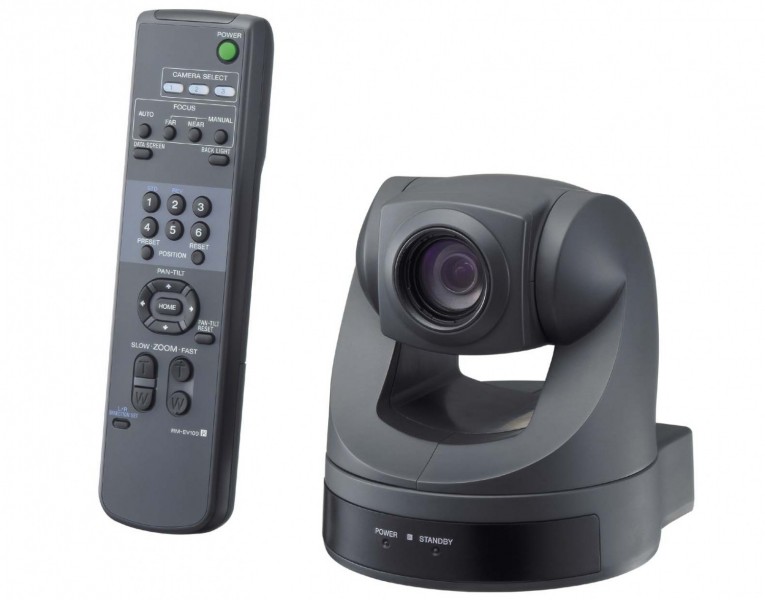

Multi-Function IR Remote Commander® Unit



EVI-D30/D31 Emulation Mode



* Using any of the pan/tilt/zoom functions will disable the alarm

Accessories



Supplied accessories :

- AC adaptor
- Ceiling Bracket
- IR remote commander unit
- Operating instruction

Optional Accessories:

- RM-BR300  : Joystick Remote Control Unit for Most Sony PTZ Cameras

The Sony RM-BR300 remote control unit can control the Sony PTZ cameras, either individually or daisy-chained!

This stylish controller has a Sony ergonomic, easy-to-use design and features a joystick. The control interfaces are RS-232C and RS-422 based on VISCA protocol. The RM-BR300 controls all major camera functions, including access to the menu and preset functions.

The SONY RM-BR300 PTZ camera joystick camera controller is designed to provide AV system.

Integrators with a broadcast quality joystick camera controller that can control any of the Sony PTZ camera.

The Controller can be used as a stand-alone camera controller or be combined with a video switching provided by one of our partners.

Additional camera pre-sets and additional camera control capabilities to your project.
Features of the Sony RM-BR300 include camera positioning, zoom and focus, backlighting, camera pre-set memory recall and storage, Multi-camera control, Pan/Tilt speed control and complete VISCA compatibility.
